How Does Batch Normalization Work? Part 1¶

In this experiment, we will train a fully-connected deep neural network on the MNIST dataset. Then, we will add a batch normalization layer and compare the performance. Finally, we will try to understand how and why batch normalization works.

What is Batch Normalization?¶

Batch normalization is an operation that is usually performed after the linear transformation in a neural network layer but before the activation function.

Training Phase¶

First, each output or feature is normalized using the feature-wise minibatch summary statistics (\(\mu_B^{(i)}\), \(\sigma_B^{(i)}\)) (\(\epsilon\) is a small constant to avoid numerical underflow errors).

\[ \hat{x}^{(i)} = \frac{x^{(i) -\mu_{B}^{(i)}}}{\sqrt{(\sigma_B^{(i)})^2 + \epsilon}} \]

The layer has two learnable parameters, \(\gamma\) and \(\beta\), which are then used to scale and shift the normalized features. This enables the next layer to receive a stable distribution for its inputs.

\[ \hat{x}^{(i)} = \gamma^{(i)} . \hat{x}^{(i)} + \beta^{(i)} \]

Testing Phase¶

At test time, the layer uses saved statistics from the training phase along with the learned parameters to perform the transformation.

Let’s Start by Loading the MNIST Dataset¶

MNIST consists of 70,000 images of handwritten digits, where each image is a 28x28 grayscale pixel grid. The dataset is split into 60,000 training examples and 10,000 test examples, with labels ranging from 0 to 9. Each image in MNIST represents a single digit written by different individuals, providing variety in handwriting styles. The pixel values range from 0 (black) to 255 (white).

Training Set Size 60000
Test Set Size 10000

Let’s look at a few training examples.

_images/40321d21d35203a826a4460aab95da7244f47520346d636a4b1c49d7e138f8f7.png

What Does Our Dataset Look Like?¶

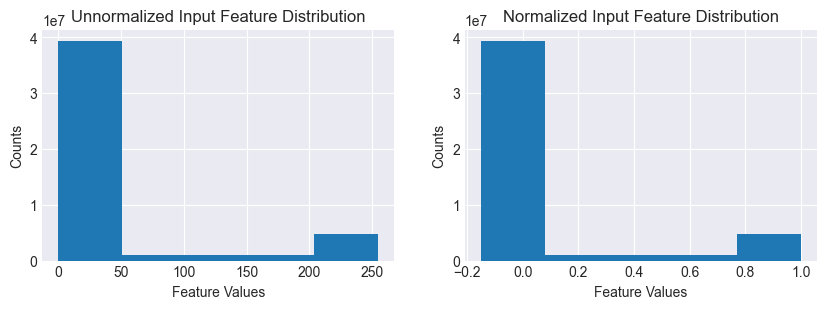

_images/292e8e65bf5dac1ec28e469c1d99955f5df4a246aedf5e9ef97b6601c62f5304.png

The unnormalized feature values are a bimodal distribution, with a big peak close to 0 (background) and a small one close to 255 (numeral). After normalization, the distribution is scaled and shifted to the range (-1,1).

Let’s Define the Models¶

Our baseline model is a fully-connected network with ReLU activations. The output layer has 10 classes to generate logits for our class probabilities. The candidate is a modified version of the baseline with an additional batch normalization layer between each dense and ReLU layer.

from typing import Dict, Any

from functools import reduce
import operator

from time import sleep

from flax import linen as nn
from flax.training import train_state
import optax

rng = jax.random.PRNGKey(42)

class MLP(nn.Module):
    @nn.compact
    def __call__(self, x):
        outputs = {}
        x = nn.Dense(256)(x)
        outputs['Dense_0'] = x
        x = nn.relu(x)
        outputs['Relu_0'] = x

        x = nn.Dense(128)(x)
        outputs['Dense_1'] = x
        x = nn.relu(x)
        outputs['Relu_1'] = x

        x = nn.Dense(64)(x)
        outputs['Dense_2'] = x
        x = nn.relu(x)
        outputs['Relu_2'] = x

        x = nn.Dense(10)(x)
        outputs['Dense_3'] = x
        return x, outputs


# Initialize the baseline model
baseline_model = MLP()
dummy_input = jnp.ones((32, 28*28))
baseline_variables = baseline_model.init(rng, dummy_input)
baseline_params = baseline_variables['params']


class MLPBatchNorm(nn.Module):
    @nn.compact
    def __call__(self, x, train: bool = True):
        outputs = {}
        x = nn.Dense(256)(x)
        outputs['Dense_0'] = x
        x = nn.BatchNorm(use_running_average=not train)(x)
        outputs['BatchNorm_0'] = x
        x = nn.relu(x)
        outputs['Relu_0'] = x

        x = nn.Dense(128)(x)
        outputs['Dense_1'] = x
        x = nn.BatchNorm(use_running_average=not train)(x)
        outputs['BatchNorm_1'] = x
        x = nn.relu(x)
        outputs['Relu_1'] = x

        x = nn.Dense(64)(x)
        outputs['Dense_2'] = x
        x = nn.BatchNorm(use_running_average=not train)(x)
        outputs['BatchNorm_2'] = x
        x = nn.relu(x)
        outputs['Relu_2'] = x

        x = nn.Dense(10)(x)
        outputs['Dense_3'] = x
        return x, outputs

# Initialize the candidate model
candidate_model = MLPBatchNorm()
dummy_input = jnp.ones((32, 28*28))
candidate_variables = candidate_model.init(rng, dummy_input, train=True)
candidate_params = candidate_variables['params']
candidate_batch_stats = candidate_variables['batch_stats']

Let’s count the parameters and plot the initial distributions for the parameter values.¶

Show code cell source Hide code cell source

# Count the # of model parameters
def count_params(params):
    num_params = 0
    for layer in params:
        for key in params[layer]:
            shape = params[layer][key].shape
            num_params += reduce(operator.mul, shape)
    return num_params

num_baseline_params = count_params(baseline_params)
num_candidate_params = count_params(candidate_params)

print(f"Number of baseline parameters: {num_baseline_params}")
print(f"Baseline P/S ratio: {num_baseline_params/train_images.shape[0]:0.4f}")
print(f"Number of candidate parameters: {num_candidate_params}")
print(f"Candidate P/S ratio: {num_candidate_params/train_images.shape[0]:0.4f}")

# Lets plot the initial baseline model weight distributions
fig, axs = plt.subplots(2, 4, figsize=[20, 7])

baseline_dense0_w = baseline_params['Dense_0']['kernel'].flatten()
candidate_dense0_w = candidate_params['Dense_0']['kernel'].flatten()

baseline_dense1_w = baseline_params['Dense_1']['kernel'].flatten()
candidate_dense1_w = candidate_params['Dense_1']['kernel'].flatten()

baseline_dense2_w = baseline_params['Dense_2']['kernel'].flatten()
candidate_dense2_w = candidate_params['Dense_2']['kernel'].flatten()

baseline_dense3_w = baseline_params['Dense_3']['kernel'].flatten()
candidate_dense3_w = candidate_params['Dense_3']['kernel'].flatten()

axs[0,0].hist(baseline_dense0_w, bins=60, alpha=0.8)
axs[0,0].set_title("Dense_0 Weights")
axs[0,0].legend(["Baseline"])
axs[0,1].hist(baseline_dense1_w, bins=60, alpha=0.8)
axs[0,1].set_title("Dense_1 Weights")
axs[0,1].legend(["Baseline"])
axs[0,2].hist(baseline_dense2_w, bins=60, alpha=0.8)
axs[0,2].set_title("Dense_2 Weights")
axs[0,2].legend(["Baseline"])
axs[0,3].hist(baseline_dense3_w, bins=60, alpha=0.8)
axs[0,3].set_title("Dense_3 Weights")
axs[0,3].legend(["Baseline"])

axs[1,0].hist(candidate_dense0_w, bins=60, alpha=0.8)
axs[1,0].legend(["Candidate"])
axs[1,1].hist(candidate_dense1_w, bins=60, alpha=0.8)
axs[1,1].legend(["Candidate"])
axs[1,2].hist(candidate_dense2_w, bins=60, alpha=0.8)
axs[1,2].legend(["Candidate"])
axs[1,3].hist(candidate_dense3_w, bins=60, alpha=0.8)
axs[1,3].legend(["Candidate"])



plt.show()

Number of baseline parameters: 242762
Baseline P/S ratio: 4.0460
Number of candidate parameters: 243658
Candidate P/S ratio: 4.0610

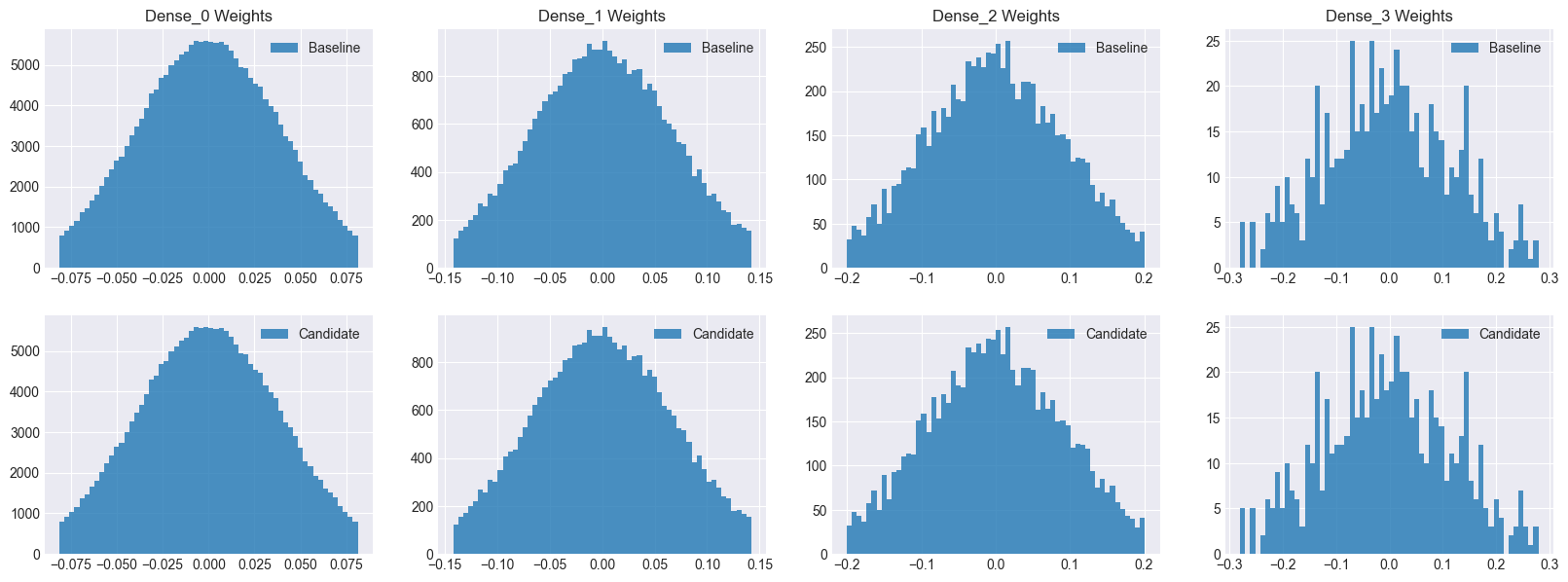

_images/e78fdbc2dc85936f0e1780471b91ee019bc5a947f08ad304be68ecf558c9f05e.png

The candidate model has a few more paramters for the batch normalization layers. Note that both models have identical weights before training.

Let’s Train the Baseline Model¶

import optax
from flax.training import train_state

rng = jax.random.PRNGKey(42)
LR = 0.001
num_epochs = 20
batch_size = 32

# Create a train state
tx = optax.adam(learning_rate=LR)
baseline_ts = train_state.TrainState.create(apply_fn=baseline_model.apply, params=baseline_params, tx=tx)

def compute_loss(params, apply_fn, images, labels):
    variables = {'params': params}
    logits, updated_variables = apply_fn(variables, images)
    one_hot_labels = jax.nn.one_hot(labels, 10)
    loss = optax.softmax_cross_entropy(logits, one_hot_labels).mean()
    return loss

@jax.jit
def train_step(state, images, labels):
    def loss_fn(params):
        return compute_loss(params, state.apply_fn, images, labels)
    grads = jax.grad(loss_fn)(state.params)
    state = state.apply_gradients(grads=grads)
    return grads, state

@jax.jit
def eval_step(state, images, labels):
    variables = {'params': state.params}
    logits, outputs = state.apply_fn(variables, images)
    predictions = jnp.argmax(logits, axis=-1)
    accuracy = jnp.mean(predictions == labels)
    return accuracy, outputs


def train_and_evaluate(rng, model, ts, train_images, train_labels, test_images, test_labels):

    num_train = train_images.shape[0]

    train_accuracy, outputs = eval_step(ts, train_images, train_labels)
    test_accuracy, _ = eval_step(ts, test_images, test_labels)
    print(f'Epoch 0, Train Accuracy: {train_accuracy:0.4f}, Test Accuracy: {test_accuracy:.4f}')
    params_history = [ts.params]
    outputs_history = [outputs]
    grads_history = []

    for epoch in range(num_epochs):

        rng, sub_rng = jax.random.split(rng)
        permutation = jax.random.permutation(sub_rng, num_train)
        train_images = train_images[permutation]
        train_labels = train_labels[permutation]

        for i in range(0, num_train, batch_size):
            batch_images = train_images[i:i + batch_size]
            batch_labels = train_labels[i:i + batch_size]
            grads, ts = train_step(ts, batch_images, batch_labels)
            if epoch == 0:
                grads_history.append(grads)
        train_accuracy, outputs = eval_step(ts, train_images, train_labels)
        test_accuracy, _ = eval_step(ts, test_images, test_labels)
        if epoch % 5 == 0:
            print(f'Epoch {epoch + 1}, Train Accuracy: {train_accuracy:0.4f}, Test Accuracy: {test_accuracy:.4f}')
        params_history.append(ts.params)
        outputs_history.append(outputs)

    return train_accuracy, test_accuracy, grads_history, params_history, outputs_history

train_accuracy, test_accuracy, baseline_grads_history, baseline_params_history, baseline_outputs_history = train_and_evaluate(rng, baseline_model, baseline_ts, train_images, train_labels, test_images, test_labels)
print(f'Epoch {num_epochs}, Train Accuracy: {train_accuracy:0.4f}, Test Accuracy: {test_accuracy:.4f}')

Epoch 0, Train Accuracy: 0.1010, Test Accuracy: 0.1007

Epoch 1, Train Accuracy: 0.9651, Test Accuracy: 0.9608

Epoch 6, Train Accuracy: 0.9919, Test Accuracy: 0.9788

Epoch 11, Train Accuracy: 0.9958, Test Accuracy: 0.9794

Epoch 16, Train Accuracy: 0.9966, Test Accuracy: 0.9803

Epoch 20, Train Accuracy: 0.9982, Test Accuracy: 0.9809

Next, Let’s Train the Candidate Model¶

import optax
from flax.training import train_state

rng = jax.random.PRNGKey(42)
LR = 0.001
num_epochs = 20
batch_size = 32


# Create a train state
tx = optax.adam(learning_rate=LR)
candidate_ts = train_state.TrainState.create(apply_fn=candidate_model.apply, params=candidate_params, tx=tx)

def compute_loss(params, batch_stats, apply_fn, images, labels, train):
    variables = {'params': params, 'batch_stats': batch_stats}
    outputs, updated_variables = apply_fn(variables, images, train=train, mutable=['batch_stats'])
    logits, _ = outputs
    one_hot_labels = jax.nn.one_hot(labels, 10)
    loss = optax.softmax_cross_entropy(logits, one_hot_labels).mean()
    return loss, updated_variables['batch_stats']

@jax.jit
def train_step(state, batch_stats, images, labels):
    def loss_fn(params):
        return compute_loss(params, batch_stats, state.apply_fn, images, labels, train=True)
    grads, updated_batch_stats = jax.grad(loss_fn, has_aux=True)(state.params)
    state = state.apply_gradients(grads=grads)
    return grads, state, updated_batch_stats

@jax.jit
def eval_step(state, batch_stats, images, labels):
    variables = {'params': state.params, 'batch_stats': batch_stats}
    logits, outputs = state.apply_fn(variables, images, train=False)
    predictions = jnp.argmax(logits, axis=-1)
    accuracy = jnp.mean(predictions == labels)
    return accuracy, outputs


def train_and_evaluate(rng, model, ts, batch_stats, train_images, train_labels, test_images, test_labels):

    num_train = train_images.shape[0]

    train_accuracy, outputs = eval_step(ts, batch_stats, train_images, train_labels)
    test_accuracy, _ = eval_step(ts, batch_stats, test_images, test_labels)
    print(f'Epoch 0, Train Accuracy: {train_accuracy:0.4f}, Test Accuracy: {test_accuracy:.4f}')
    params_history = [ts.params]
    batch_stats_history = [batch_stats]
    outputs_history = [outputs]
    grads_history = []

    for epoch in range(num_epochs):

        rng, sub_rng = jax.random.split(rng)
        permutation = jax.random.permutation(sub_rng, num_train)
        train_images = train_images[permutation]
        train_labels = train_labels[permutation]

        for i in range(0, num_train, batch_size):
            batch_images = train_images[i:i + batch_size]
            batch_labels = train_labels[i:i + batch_size]
            grads, ts, batch_stats = train_step(ts, batch_stats, batch_images, batch_labels)
            if epoch == 0:
                grads_history.append(grads)

        train_accuracy, outputs = eval_step(ts, batch_stats, train_images, train_labels)
        test_accuracy, _ = eval_step(ts, batch_stats, test_images, test_labels)
        if epoch % 5 == 0:
            print(f'Epoch {epoch + 1}, Train Accuracy: {train_accuracy:0.4f}, Test Accuracy: {test_accuracy:.4f}')
        params_history.append(ts.params)
        batch_stats_history.append(batch_stats)
        outputs_history.append(outputs)

    return train_accuracy, test_accuracy, grads_history, params_history, batch_stats_history, outputs_history

train_accuracy, test_accuracy, candidate_grads_history, candidate_params_history, candidate_batch_stats_history, candidate_outputs_history = train_and_evaluate(rng, candidate_model, candidate_ts, candidate_batch_stats, train_images, train_labels, test_images, test_labels)

print(f'Epoch {num_epochs}, Train Accuracy: {train_accuracy:0.4f}, Test Accuracy: {test_accuracy:.4f}')

Epoch 0, Train Accuracy: 0.1010, Test Accuracy: 0.1007

Epoch 1, Train Accuracy: 0.9755, Test Accuracy: 0.9677

Epoch 6, Train Accuracy: 0.9941, Test Accuracy: 0.9802

Epoch 11, Train Accuracy: 0.9968, Test Accuracy: 0.9802

Epoch 16, Train Accuracy: 0.9986, Test Accuracy: 0.9816

Epoch 20, Train Accuracy: 0.9993, Test Accuracy: 0.9846

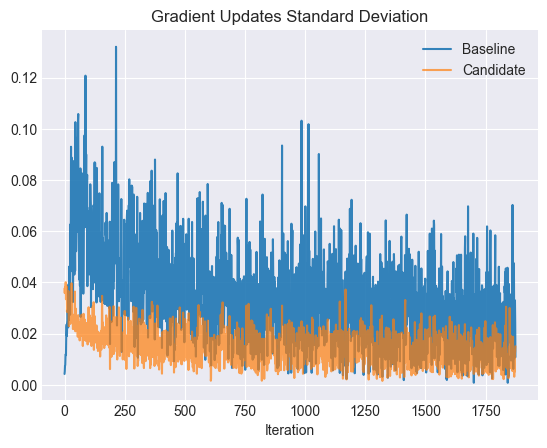

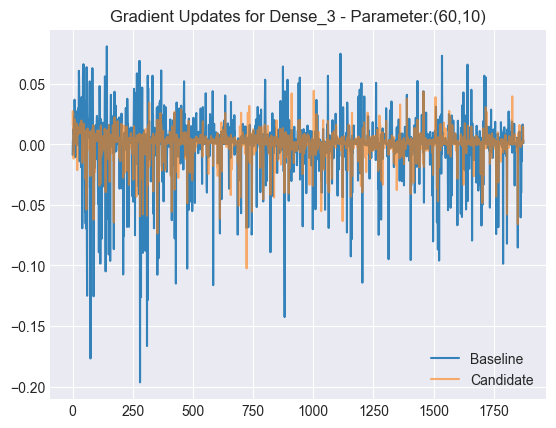

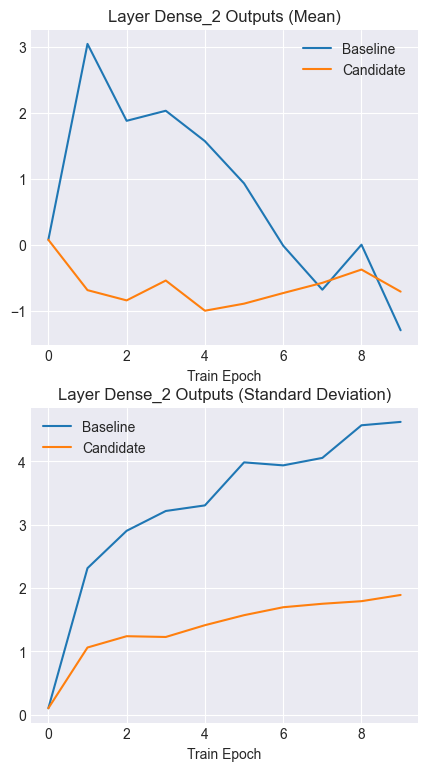

As you can see, the candidate model with the batch normalization layers performs better than the baseline, and also converges faster.

So Why Does Batch Normalization Help?¶

Let’s track the histograms for the activations for each layer over the training epochs.

Notice that both the baseline and candidate activations are identical at the start of training. However, as the training progresses, after each epoch, the baseline model activations tend to shift and spread out. This is called internal covariate shift. On the other hand, notice how stable the outputs for the candidate model’s layers are.

Internal Covariate Shift¶

As we just observed, in deep networks, the distribution of the inputs to a layer can change quite rapidly and inconsistently, making it more difficult for the model to converge. This is where batch norm helps by ensuring a more consistent and stable distribution for the outputs of a layer (and consequently, the inputs of the subsequent layer).

_images/6335890396107fc62a84ba93a471be5499de2556df38e5c3ba8e0dd4825ab142.png

Notice how the output means for the candidate model remain stable and consistent over time. Similarly, note the lower and more consistent standard deviations for the candidate outputs.

Smoother Gradient Updates¶

Let’s look at how the gradient updates change over time. This time, we will focus on the first epoch only and see what the values of the gradient updates look like. First, let’s choose a single parameter to track.

_images/b90739320b8318c337a9437fa524b32d81fa2cd281a7c33d652396fa5da53774.png

Notice that the candidate’s gradient updates are a lot smoother than the baseline model’s. Next, let’s plot the mean and standard deviations for all gradient updates across iterations.

_images/18321a0b901d9ba2a50e4d72640187bad8dbcecc4a144b2203b6bb4a17c2a0e4.png

The candidate’s gradient updates tend to have smaller standard deviations, especially early in the training.

_images/3bf75f397f1de00386bed2dc4af91df8d04fe3104b197306ac98ed5ab74c0bc7.png

The mean gradient updates for the candidates tend to be smaller as well, leading to a smoother loss surface and faster convergence.
